STAKO SCY-2800RE+ 2050 W MAGNETIC DRILL 220VOLTS NOT FOR USA

Brand STAKO Power source Corded Electric Maximum rotational speed 340 RPM Voltage 230 Volts Amperage 10 Amps

Product Code: SCY-2800RE+ Product ID: 34810
Product sold by: samstores.com

$ 3650

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

Power - With 2050 watts of power, the SCY-2800RE+ magnetic drill from STAKO allows precise core and solid drilling as well as thread cutting with clockwise / anti-clockwise rotation. Masters the toughest materials, with max. Drilling diameter of 80 mm for core and up to 28 mm for full drilling. Ideal for use in demanding areas such as steel construction, shipbuilding, bridge and crane construction as well as railway construction.
Precise control - The magnetic drill has a soft start function that protects the device as well as the electrical installation from overload. The infinitely variable speed adjustment by means of potentiometer from 0 to 340 rpm, accessible via the control panel, is ideal for use with drills of different diameters.
Stability - The core drill with a magnetic force of 17000 N (1700 kg) and magnetic base dimensions of 200 x 105 mm ensures that the machine remains stable in one position thanks to its outstanding magnetic adhesion to minimise vibration and movement during drilling. Whether horizontal, vertical or upside down, the robust magnetic base allows precise and stable performance during drilling work, which significantly increases precision and efficiency. The adjustable magnetic base of the drill allows 360° rotation to the right or left.
Safety and handling - The STAKO magnetic drill has a safety mechanism that prevents unwanted restart after a power failure. The use of the coolant reservoir effectively minimizes friction and heat generation, which directly increases the quality of the holes and ensures a smooth drilling process. The three extended cranks facilitate precise adjustment of the drill with a secure grip and little effort.

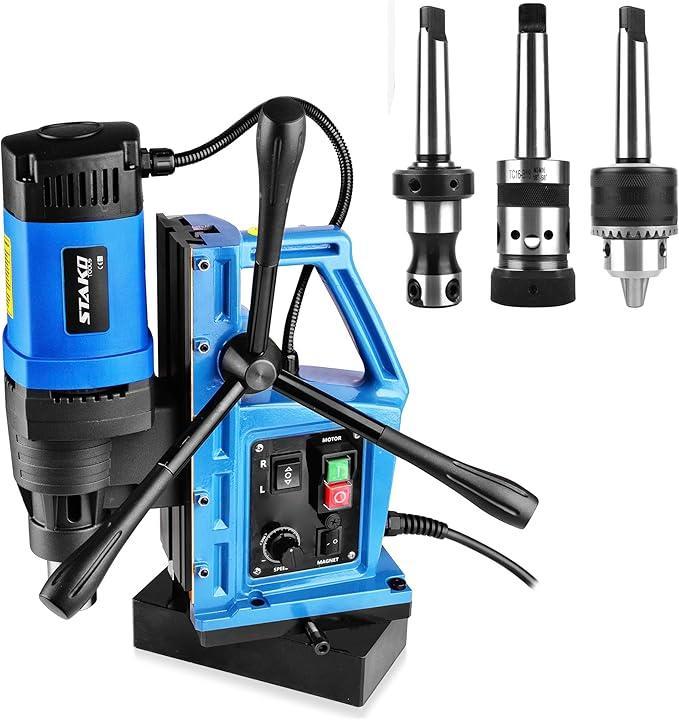

The STAKO SCY-2800RE+ magnetic core drilling machine is the ideal choice for complex metalworking projects. Designed for steel and shipbuilding, bridge and crane construction, railway engineering, wind turbines, and power plants, it is also indispensable in metalworking and automotive workshops. Its robust construction and efficiency enable precise drilling work, while its portability ensures flexible use in a variety of locations. The drill's adjustable magnetic base allows for 360° rotation to the right or left. *Set No. 3 with two drill chucks: 1. Weldon 19mm MT3/MK3 chuck with coolant tank 2. Standard drill chuck 3-16mm MT3/MK3 3. Tapping chuck M3 – M16 Technical details: Motor power: 2050 W Power supply: 230 V / 50-60 Hz Soft start: Yes Speed control: 0 – 340 rpm Right/left rotation for thread cutting: Yes Spindle taper: MK 3 Max. drilling diameter with core drill: 80 mm Max. drilling diameter with solid drill: 28 mm Height: Max. 590 mm / Min. 405 mm Working stroke: 185 mm Magnetic force: 17000 N (1700 kg) Magnetic base dimensions: 200 x 105 mm Weight: 17 kg Scope of delivery for Set 3: 1 x magnetic core drilling machine SCY-2800RE+ 1 x MK3 19 mm Weldon drill chuck 1 x 500 ml coolant tank 1 x M3 – M16 tapping chuck 1 x B16 / 3-16 mm keyed drill chuck 1 x chuck key 1 x MK3 mandrel for drill chuck attachment 1 x drift key 1 x MK3 / MK2 reducing sleeve 1 x Allen key 3 x rotary handles 1 x safety belt 1 x spare carbon brushes for the motor 1 x spare fuse 1 x operating instructions 1 x carrying case
Manufacturer‎STACK
Part Number‎SCY-2800RE+/SET-3
Product Dimensions‎34 x 24 x 59 cm; 17 kg
Item model number‎SCY-2800RE+/ SET-3
Size‎‎Fi max. 80mm | 2050W
Colour‎Blue and Black Set-3
Material‎Aluminium, steel, plastic
Power Source‎Corded Electric
Voltage‎230 Volts
Wattage‎2050 watts
Maximum Power‎2050 Watts
Item Package Quantity‎1
Cord Length‎3.2 Metres
Speed‎340
Special Features‎Powerful motor, continuous speed adjustment, right and left drilling options and strong magnetic base
Included Components‎Set 3: 1 x magnetic drill SCY-2800RE+, 1 x Weldon chuck 19 mm ¾ inch, 1 x coolant container 500 ml, 1 x thread cutting chuck M3 - M16, 1 x cog drill chuck B16 / 3-16 mm, 1 x chuck wrench for the chuck, 1 x MK3 Thorn For drill chuck attachment, 1 x drive wedge, 1 x reducing sleeve - MK3 / MK2, 1 x Allen key, 3 x twist handles, 1 x safety belt, 1 x set of replacement carbon brushes for the engine, 1 x spare fuse, 1 x user and safety manual, 1 x transport case
Item Weight‎17 Kilograms
