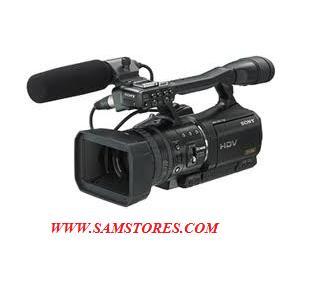

SONY HVRV1P HDV PAL CINEMA STYLE CAMCORDER

Features

With 25p, users can mimic the shutter of film, which is often sought after for commercials and dramatic productions. Equally important, Sony's progressive technique records into standard 50i streams, so no additional gear is required. All your existing Sony HDV equipment will play 25p without a hitch! It couldn't be easier.

The camera also features 3CMOS ClearVid sensor technology. These CMOS sensors create sharp, rich images with natural color reproduction sure to please even the most scrutinizing eye. These features combined with a high-end Carl Zeiss Vario-Sonnar T Lens, makes the HVR-V1P a welcome addition to the already proven line of Sony professional HDV products.

High Definition on MiniDV Tapes with HDV

The HDV format, used in the HVR-V1P allows high definition recording on standard MiniDV tapes. This is accomplished by using the very popular MPEG-2 compression technique used in many applications, including DVDs and satellite television.

25p Capability

In 25p mode, images from the CMOS can be recorded onto tape in the standard 50i HDV format. The tape can then be played back or edited using an ordinary HDV system. True 25p editing can be achieved by uploading 2:2 pulldown-converted images via an i.LINK FireWire interface to a compatible non-linear editing system. The resultant images resemble the visual motion of film!

ClearVID 3CMOS Technology Sony's ClearVID sensors are positioned at a 45° angle. Since each pixel is positioned at this angle, the result is far clearer diagonal lines. Images will appear crisper, without the apparent "jaggies" that often plague video signals.

HDMI Output

Many consumer products are adopting High Definition Media Interface (HDMI) connections for transmitting uncompressed digital HD video signals. Sony has upped the ante by incorporating this into the already extensive array of video output choices on the HVR-V1P. Connect the camera to any HDTV via this interface and view all your footage the way it was meant to be seen: purely digital!

Signal System HDV: 1080/50i

DVCAM/DV: 576/50i (PAL)

Image Device: 1/4" 3CMOS ClearVid Sensor

Lens: Carl Zeiss Vario-Sonnar T* Zoom Lens, 20x (Optical),

Horizontal Resolution: 1080 Lines

Minimum Illumination: 4 lux, f/1.6 at 18dB

Built-in Filters: 1/4 ND, 1/16 ND

LCD Monitor: Clear Photo LCD Plus, 3.5", 16:9 Aspect Ratio

Viewfinder: 0.44", 252,000 Pixels, 16:9 Aspect Ratio

Scan Matching: Yes

Memory Card Slot: No

Shutter Speed Range: 1/3, 1/6, 1/25, 1/50, 1/60, 1/100, 1/120, 1/150, 1/215, 1/300, 1/425, 1/600, 1/1000, 1/1250, 1/1750, 1/2500, 1/3500, 1/6000, 1/10000sec

Gain Selection: 0, 3, 6, 9, 12, 15, 18dB

VTR

Tape Format DVCAM Small Cassette

HDV Record and Play

DVCAM Record and Play

DV Record and Play

Tape Speed HDV: 18.8mm/s

DVCAM: 28.2mm/s

DV SP Mode: 18.8mm/s

Maximum Recording Time HDV: 63 min (with PHDVM-63DM Cassette)

DVCAM: 41 min (with PHDVM-63DM Cassette)

DV: 63 min (with PHDVM-63DM Cassette)

Audio

Audio Signal Format HDV

MPEG1 Audio Layer II

DVCAM/DV

16-bit/48kHz 2 Channel Mode

12-bit/32kHz 4 Channel Mode Audio Frequency Response 20Hz to 20kHz

General

Input and Output Connectors Composite Video: RCA (x1 Output, A/V Out 10-pin Connector Jack)

Component Video (x1 Output)

HDV/DV I/O: i.LINK FireWire Interface

Audio: XLR 3-Pin (x1 Input)

Headphones: Stereo Mini Jack

LANC: Stereo Mini-mini (2.5mm) Jack

USB: Mini-B Connector

HDMI Output: HDMI Connector

Analog Audio: XLR (x2 Output)

Power Requirements Battery: 7.2VDC, AC Adapter: 8.4VAC

Power Consumption HDV: 6.8W

DVCAM/DV: 6.6W

Operating Temperature 32-104°F (0-40°C)

Weight 3.6 lbs (1.6kg)

This is a "PAL" product and CANNOT be used in the USA. It is designed for use with video products built to PAL TV standards.
