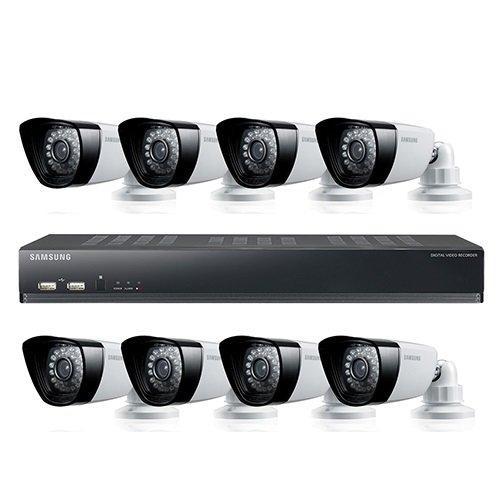

SDS-P5080N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 8 night vision security cameras (SDC-5340BC). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5080N comes with 8 BNC Siamese cables for all 8 of your included surveillance cameras.
Product Code: SA-SDSP5080N Product ID: 23285
Product sold by: samstores.com
SDS-P5080N is a 16 channel Samsung Security System. It is an all-in-one home surveillance system and it comes with everything you need in the box. The DVR system comes with 8 night vision security cameras (SDC-5340BC). These Samsung Surveillance cameras are all rated IP66 (Weatherproof) and record up to 82ft range. The SDS-P5080N comes with 8 BNC Siamese cables for all 8 of your included surveillance cameras.
SDS-P5080N is one of the very few Samsung Security systems with a BNC cables. Because of the BNC connectors, it is also one of the most versatile Surveillance DVR systems available from Samsung’s DIY line of Home security systems. The system comes with a 1 TB Seagate HDD and it utilizes H.264 compression technology, giving you a long recording time. The DVR security system is easy to set up and easy to use. If you run into any problems, Samsung also offers you a life time technical support service. Your Samsung surveillance cameras can be set for motion detection and for email event alerts. The Surveillance DVR can also be linked with an infinite number of other Samsung Security Systems through smartviewer; a program that allows you to monitor multiple security surveillance systems at one time.
Your Surveillance DVR and Video Surveillance Cameras Includes the following features:
Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iPhone and android devices.
8 IP66 weatherproof security cameras (SDC-5340BC)
8 x 60ft of BNC Siamese cables included
Included Samsung surveillance cameras record at 600TVL.
480 total FPS (Frames per second)
1TB of storage USB 2.0 and records using H.264 compression technology.
Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
One of the most flexible CCTV systems out in the market today.
8 Surveillance Cameras Included, Room for 8 more:
Samsung SDC-5340BC is a bullet BNC security camera. It is weatherproof with an IP rating of IP66. It records at 600TVL and has a night vision range of maximum 82 ft. The SDC-5340BC will use a 60ft of Siamese BNC cable included in the kit. The SDC-5340BC has lenses with focus length of 3.6mm, a depth visual angle of 72?. As you know, you have 8 Samsung surveillance cameras straight out of the box, but also 8 open channels.
SDR-5100 | ||
Display | ||
Video | Inputs | 16 Composite video 0.5-1 Vp-p, 75 ohm |
Resolution | NTSC : 704 x 480 | |
Live | Frame Rate | NTSC : 480fps |
Resolution | NTSC : 704 x 480 | |
Multi Screen Display | 1 / 4 / 6 / 8 / 9 / 16 / Sequence / PIP | |
Performance | ||
Operating System | Embedded | Linux |
Recording | Compression | H.264 |
Record Rate | NTSC : Up to 120fps@704 x 480, Up to 240fps@704 x 240, Up to 480fps@352 x 240 | |
Mode | NTSC : Manual, Schedule, Event, Time Laps | |
Overwrite Modes | Continuous | |
Pre-alarm | Off / 5sec | |
Post-alarm | Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour) | |
Search & Playback | Search Mode | Date/Time, Event, Back up, Motion |
Playback Function | Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only Slow forward / backward (1/2x, 1/4x, 1/8x) Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only | |
Network | Transmission Speed | CIF 120/100fps |
Bandwidth | Up to 4Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps | |
Bandwidth Control | Automatic | |
Stream | H.264 (4CIF) | |
Max. Remote Users | Search 3 / Live unicast 10 / Live multicast 20 | |
Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP | |
Monitoring | SmartViewer, Webviewer, Mobile Viewer | |
Smart Phone | Smart Phone | Android, iOS (iPhone, iPad) |
Protocol Support | RTP, RTSP, HTTP, CGI | |
Transmission Speed | CIF Max. 16fps (Single channel) / CIF Max. 4fps (Quad channel) | |
Max. Remote Users | Live 1 | |
Storage | Internal HDD | 1TB SATA HDD |
USB (Back up) | 2 USB ports | |
File Format (Back up) | BU (DVR player), EXE (Include player) | |
Security | Password Protection | 1 Admin, 10 Group, 10 User per 1group |
Data Authentication | Watermark | |
Interface | ||
Monitors | VGA | 1 VGA (1024 x 768, 1280 x 1024) |
HDMI | 1 HDMI (720p/1080p resolution) | |
Audio | Inputs / Output | 4 line in / 1 line out |
Compression | G.711 | |
Sampling Rate | 8KHz | |
Alarm | Remote Notification | Notification via e-mail |
Connections | Ethernet | 1 RJ-45 10/100Mbps Base-T |
USB | USB 2.0, 2 ports (Front) | |
Application Supoort | Mouse, Remote control | |
Protocol Support (RS-485) | Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, Vicon, GE | |
General | ||
Electrical | Input Voltage / Current | 12V DC adaptor, 4A, 100 ~ 250V AC, 50/60Hz, 48watt |
Power Consumption | Max. 40W (With 1x HDD) | |
Environmental | Operating Temperature / Humidity | 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH |
Mechanical | Dimensions (WxHxD) | 360.0 x 44.0 x 160.0mm (14.17" x 1.73" x 6.30") |
Weight (With hard disks) | 1,67Kg (3.68 lb) | |
Language | English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek |
