SAMSUNG SDS-P3042 - 4CH SECURITY CAMERA SYSTEM 110-220 VOLTS

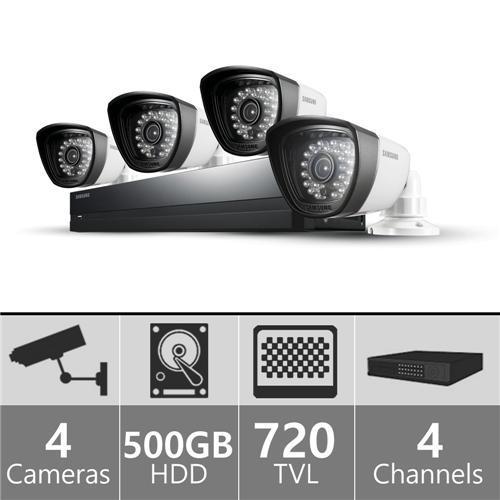

Smartphone and PC/Mac ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. (iPOLis mobile available on your iPhone and android devices) 960H real-time monitoring & recording 4 IP66 weatherproof security cameras (SDC-7340BC) 4 x 60ft BNC/AC Power Siamese Cable Samsung surveillance cameras record at 600TVL. 120 total FPS (Frames per second) Built-in 500GB hard disk drive [SATA] and records using H.264 compression technology. Supports optional Samsung USB WiFi adapter Various search modes (Search by time, event, backup and motion detection) Various recording modes (Manual, event, scheduled recording) Alarm Interface PTZ Supportable
Product Code: SDS-P3042 Product ID: 22812
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
Display
Video Inputs 4 Composite video
Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576
Live Frame Rate NTSC : 120fps / PAL : 100fps
Resolution NTSC : 960 x 480 / PAL : 960 x 576
Multi Screen Display 1 / 4 / Sequence / PIP
Performance
Operating System Embedded Linux
Recording Compression H.264
Record Rate
NTSC : Up to 120fps@960 x 480 / PAL : Up to 100fps@960 x 576
NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576
NTSC : Up to 120fps@704 x 240 / PAL : Up to 100fps@704 x 288
NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288
Mode NTSC : Manual, Schedule, Event, Time Laps
PAL : Manual, Schedule, Event, Time Laps
Overwrite Modes Stop / Continuous
Pre-alarm Off / 5sec
Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Search & Playback Search Mode Date/Time, Event, Back up, Motion
Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward
Network Transmission Speed 960H / 4CIF / 2CIF / CIF (NTSC : 120fps, PAL : 100fps)
Bandwidth Up to 8Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Bandwidth Control Automatic
Stream H.264 (4CIF / 2CIF / CIF Selectable)
Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20
Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring SmartViewer, Webviewer, Mobile Viewer
Smart Phone Smart Phone Supported / Web / App Viewer
Storage Internal HDD 500GB SATA
USB (Back up) 2 USB ports
File Format (Back up) BU (DVR player), EXE (Includes player)
Security Password Protection 1 Admin, 10 Group, 10 User per 1group
Data Authentication Watermark
Interface
Monitors VGA / HDMI 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) / 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)
Simultaneous Output VGA and HDMI
Audio Inputs / Output 4CH line In / 1CH line out
Compression G.711
Alarm Remote Notification Notification via e-mail
Connections Ethernet 1 RJ-45 10/100Mbps Base-T
USB USB 2.0, 2 ports (Front)
Application Supoort Mouse, Remote control
Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, VICON, GE
Wi-Fi Optional with Samsung USB WiFi adapter
Electrical Input Voltage / Current 12V DC adaptor, 100 ~ 240V AC ±10%, 50/60Hz
Power Consumption Max. 10W (With 1x HDD)
Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH
Mechanical Dimensions (WxHxD) 315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82")
Weight (With hard disks) 1.58Kg (4.06 lb)
Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek
SDC-7340BCN
Electrical
Input Voltage 12V DC
Power Consumption 3W
VIDEO
Imaging Device 1/3" CMOS
Scanning System Interlace
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 720TV lines / Color : 7Lux
Min. Illumination 0Lux (IR LED)
S/N Ratio (Y Signal) 46dB
LENS
Focal Length 3.8mm
Max. Aperture Ratio F2.0
Angular Field of View H : 75? / V : 66? / D : 80?
OPERATIONAL
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (3,200°K ~ 6,500°K)
Digital Noise Reduction Auto
Day & Night Mechanical :Auto (ICR)
IR Distance (850nm) 25m (82ft)
ENVIRONMENTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 85% RH
White Balance -20°C ~ +60°C (+4°F ~+140°F) / 20% ~ 85%RH
MECHANICAL
Ingress Protection IP66
Dimensions (WxHxD) 72.1 x 62.9 x 192.4mm (2.84" x 2.48" x 7.57")
Weight 252g (0.56 lb)
