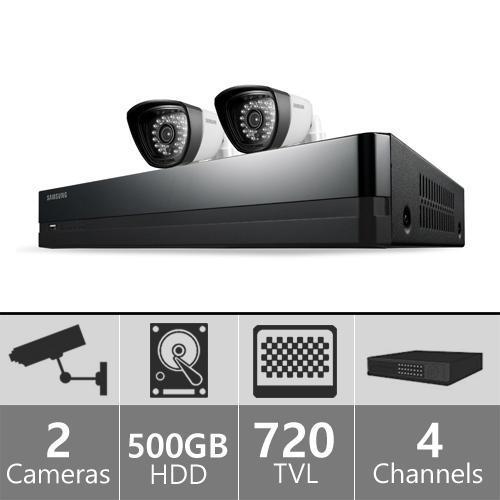

SAMSUNG SDS-P3022 - 4CH 960H SECURITY CAMERA SYSTEM 110-220 VOLTS

SDS-P3022 is a Samsung security system with 4 channels and part of Samsung new line of DIY security DVRs with BNC connectors. The SDS-P3042 comes with 2 BNC security Box cameras (SDC-7340BC). The Samsung surveillance cameras included in the kit are rated IP66 and record at 720TVL. The 2 Samsung cameras included in the kit connect to the DVR using 60ft Siamese BNC cables. You also receive a special accessory that will allow you to power your BNC cables through the DVR rather than an outlet.

Product Code: SDS-P3022 Product ID: 24867
Product sold by: samstores.com

$ 190

Availability: In Stock New

Shipping Information:

Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!

SDR-3102

Display

Video Inputs 4 Composite video

Resolution NTSC : 960 x 480, 720 x 480 / PAL : 960 x 576, 720 x 576

Live Frame Rate NTSC : 120fps / PAL : 100fps

Resolution NTSC : 960 x 480 / PAL : 960 x 576

Multi Screen Display 1 / 4 / Sequence / PIP

Performance

Operating System Embedded Linux

Recording Compression H.264

Record Rate

NTSC : Up to 120fps@960 x 480 / PAL : Up to 100fps@960 x 576

NTSC : Up to 120fps@704 x 480 / PAL : Up to 100fps@704 x 576

NTSC : Up to 120fps@704 x 240 / PAL : Up to 100fps@704 x 288

NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288

Mode NTSC : Manual, Schedule, Event, Time Laps

PAL : Manual, Schedule, Event, Time Laps

Overwrite Modes Stop / Continuous

Pre-alarm Off / 5sec

Post-alarm Up to 6hour (5,10, 20, 30sec, 1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)

Search & Playback Search Mode Date/Time, Event, Back up, Motion

Playback Function Fast forward / backward, Slow forward / backward, Step forward / backward

Network Transmission Speed 960H / 4CIF / 2CIF / CIF (NTSC : 120fps, PAL : 100fps)

Bandwidth Up to 8Mbps, 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps

Bandwidth Control Automatic

Stream H.264 (4CIF / 2CIF / CIF Selectable)

Max. Remote Users Search 3 / Live unicast 10 / Live multicast 20

Protocol Support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP

Monitoring SmartViewer, Webviewer, Mobile Viewer

Smart Phone Smart Phone Supported / Web / App Viewer

Storage Internal HDD 500GB SATA

USB (Back up) 2 USB ports

File Format (Back up) BU (DVR player), EXE (Includes player)

Security Password Protection 1 Admin, 10 Group, 10 User per 1group

Data Authentication Watermark

Interface

Monitors VGA / HDMI 1 VGA (1280 x 720, 1280 x 1024, 1920 x 1080) / 1 HDMI (1280 x 720, 1280 x 1024, 1920 x 1080)

Simultaneous Output VGA and HDMI

Audio Inputs / Output 4CH line In / 1CH line out

Compression G.711

Alarm Remote Notification Notification via e-mail

Connections Ethernet 1 RJ-45 10/100Mbps Base-T

USB USB 2.0, 2 ports (Front)

Application Supoort Mouse, Remote control

Protocol Support (RS-485) Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD, VICON, GE

Wi-Fi Optional with Samsung USB WiFi adapter

Electrical Input Voltage / Current 12V DC adaptor, 100 ~ 240V AC ±10%, 50/60Hz

Power Consumption Max. 10W (With 1x HDD)

Environmental Operating Temperature / Humidity 0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85%RH

Mechanical Dimensions (WxHxD) 315.0 x 52.0 x 224.0mm (12.4" x 2.05" x 8.82")

Weight (With hard disks) 1.58Kg (4.06 lb)

Language English, Spanish, French, German, Italian, Polish, Portuguese, Russian,Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Netherland, Thai, Romanian, Serbian, Croatian, Hungarian, Greek

SDC-7340BCN

Electrical

Input Voltage 12V DC

Power Consumption 3W

VIDEO

Imaging Device 1/3" CMOS

Scanning System Interlace

Frequency H : 15,734Hz / V : 59.94Hz

Horizontal Resolution 720TV lines / Color : 7Lux

Min. Illumination 0Lux (IR LED)

S/N Ratio (Y Signal) 46dB

LENS
