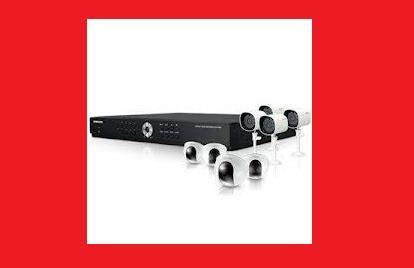

SDE-5001N is a 16 Channel Samsung security system. It’s an all-in-one home surveillance system, perfect for your home and business. This Samsung DVR system is everything you need in a video surveillance system in a box. The SDE-5001N comes with your security DVR and 8 night vision security cameras. The 4 outdoor security cameras (SEB-1005R) are security box cameras made out of metal and the 4 dome cameras (SED-1001R) are for indoor use only. Your Samsung security cameras have an IP rating of IP66 and connect to your Samsung DVR using a single RJ-45 Cat5e cables. You will receive a 60ft RJ45 cable (SEA-C200) for each camera.
Product Code: SA-SDE5001N Product ID: 20717
Product sold by: samstores.com
SDE-5001N is a 16 Channel Samsung security system. It’s an all-in-one home surveillance system, perfect for your home and business. This Samsung DVR system is everything you need in a video surveillance system in a box. The SDE-5001N comes with your security DVR and 8 night vision security cameras. The 4 outdoor security cameras (SEB-1005R) are security box cameras made out of metal and the 4 dome cameras (SED-1001R) are for indoor use only. Your Samsung security cameras have an IP rating of IP66 and connect to your Samsung DVR using a single RJ-45 Cat5e cables. You will receive a 60ft RJ45 cable (SEA-C200) for each camera.
SDE-5001N truly is a Samsung Security System that is a byproduct of innovation and a desire to bring security and convenience hand in hand. The SDE-5001N system comes with a 1 TB Seagate HDD, and with your surveillance DVR system utilizing H.264 compression technology, it will record even longer. You can monitor your Samsung Security System remotely. You can monitor your DVR security system through your PC or Smartphone. You can also set your Samsung surveillance cameras to motion detection and set your motion detection. When your Samsung surveillance cameras detect motion, it can be set to send you email notifications in case of an event. Lastly, The system can be linked with an infinite number of other Samsung security system through SmartViewer; a program that allows you to monitor an infinite number of Samsung security systems at the same time.
Your Surveillance DVR and Video Surveillance Cameras Includes the following features:
Smartphone and PC ready. View Anytime/Anywhere! Remote viewing on Internet Explorer or iPOLis mobile. iPOLis mobile available on your iphone and android devices.
4 IP66 weatherproof security cameras (SEB-1005R)
4 Indoor dome security cameras (SED-1001R]
8 x 60ft of RJ-45 CAT5e cables included (SEA-C200)
Both indoor and outdoor surveillance cameras record at 520TVL.
480 total FPS (Frames per second)
1TB of storage USB 2.0 and records using H.264 compression technology.
Can set for either continuous recording or motion detection mode. DVR will send email notification when motion is detected in the motion detection mode.
Can schedule individual surveillance cameras for continuous, motion, or both by date and time. Can also set security DVR system to ignore certain areas in its field of vision. You can also set motion detection sensitivity.
One of the most flexible CCTV systems out in the market today.
Audio enabled. Must use Samsung’s audio camera (SEB-1006R)
Wireless cameras available (SEB-1004RW)
8 Surveillance Cameras Included, Room for 8 more: Samsung SEB-1005R is a metal box security camera. It has an IP rating of IP66. It records at 520TVL and has a night vision range of maximum 50 feet. Samsung SED-1001R is a dome security camera. It has a dome shape and is designed for indoor use. Both of these cameras will connect to your Samsung DVR Security System through a single RJ-45 Cable (SEA-C200). Both SEB-1005R and SED-1001R have lenses with focus length of 3.8mm, a vertical visual angle of 40?, and a horizontal visual angle of 54?. As you know, you have 8 Samsung surveillance cameras straight out of the box, but also 8 open channels. You can upgrade your surveillance DVR into a 16 camera security system.
Other 8 Channel Systems SDE-5002N Samsung’s 16 Channel security DVR system. Comes with 4 x SEB-1007R and 4 x SED-1001R (Dome Camera) Same system as the SDE-5001N but comes with 4 plastic security box cameras instead of the metal.
Samsung SDE-5001 is a Samsung DVR Security System that offers up to 16 channels for complete protection for your home or business. Samsung SDE-5001 is your ultimate security solution. This 16 Channel Samsung DVR Security System has everything you need to setup and get started is in the box.
The SDE-5001 features an 16 channel DVR with a 1 TB hard drive. In the box, you will find 4 night vision water proof cameras* and 4 indoor dome cameras. Simple to set up and even easier to use, you can monitor your business or home anytime from anywhere around the world so you will always know what is going on even when you are not there.
Samsung also offers lifetime technical support on this product so you are always covered.
With Samsung’s Anytime Anywhere viewing, you can monitor your SDE-5001 system at anytime from anywhere in the world through your PC or Smartphone. You can also change and set any functions on your DVR remotely from your PC. You can even set the SDE-5001 to send you alerts via email when programmed events such as motion detection or loss of video signal, occurs. It brings security and convenience hand in hand.
Item | SDE-5001 | |
---|---|---|
Video | Inputs | 16 UTP Line(CH1-CH16), BNC 2 ports(CH1, CH2) |
Resolution | 704x480 NTSC | |
Live | Frame rate | 30 ips NTSC |
Resolution | 704x480 NTSC | |
Performance | ||
Operating System | Embedded | Linux |
Recording | Compression | H.264 |
Record Rate | NTSC: Up to 120ips @ 704x480 | |
NTSC: Up to 240ips @ 704x240 | ||
NTSC: Up to 480ips @ 352x240 | ||
Mode | Manual, Schedule, Event | |
Overwrite modes | Continuous | |
Pre-event | Off/5/10/20/30sec | |
Post-event | - Off/5/10/20/30sec - 1/3/5/10/20min, 1/2/3/4/5/6 hour | |
Search | Search mode | Date/time, Event, Backup, Motion |
Network | Steam | H.264 (CIF) |
Max. No. Of Remote Users | Search (3)/ Live Unicast (10)/ Live Multicast (20) | |
Protocol Support | TCP/IP, DHCP, PPPoE, SMTP, NTP, LIGHTTPD & UDP, DDNS, RTP RTSP | |
Monitoring | Smart Viewer, Webviewer, Mobile Viewer | |
Storage | Internal HDD | 1 TB SATA HDD |
USB (Back-up) | 2 USB Ports | |
File Format | AVI, SEC, DVR | |
Interface | ||
Audio | Inputs/Ouput | 16 UTP Line(CH1~CH16), 2 Port RCA(CH1, CH2)/ 1 line out |
Alarm | Remote notification | Notification via e-mail |
Connections | Ethernet | 1 RJ-45 10/100/1000 Base-T |
USB | USB 2.0, 2 ports | |
General | ||
Electrical | Input Voltage/Current | 100 ~ 240 VAC +/- 10% 50/60 Hz, Autoranging |
Power consumption | ADP-4812 Adaptor (2 EA), 12V, 48W+48W | |
Mechanical | Dimension (W x H x D) | 350 x 44 x 300 mm |
Weight (With harddisks) | 2.83kg | |
Language | English, Spanish, French, German, Italian, Polish, Portuguese, Russian, Turkish, Japanese, Czech, Swedish, Danish, Korean, Chinese, Dutch, Thai, Romanian, Serbian, Croatian, Hungarian, Greek |
Item | Details | |||||||
SEB-1005R N | SEB-1005R P | SED-1001R N | SED-1001R P | |||||
Electrical | ||||||||
Input Voltage | DC 12V(by UTP) | DC 12V(by UTP) | DC 12V(by UTP) | DC 12V(by UTP) | ||||
Power Consumption | 2.6W | 2.6W | 2.2W | 2.2W | ||||
Video | ||||||||
Imaging Device | MT9V138 | MT9V138 | MT9V138 | MT9V138 | ||||
Total Pixels | 680 x 512 | 680 x 512 | 680 x 512 | 680 x 512 | ||||
Scanning System | Interlace | Interlace | Interlace | Interlace | ||||
Synchronization | Internal | Internal | Internal | Internal | ||||
Frequency | H: 15,734 Hz | H: 15,625 | H: 15,734 Hz | H: 15,625 | ||||
V: 59.94 Hz | V: 50 Hz | V: 59.94 Hz | V: 50 Hz | |||||
Horizontal Resolution | 520TVL | 520TVL | 520TVL | 520TVL | ||||
Min. Illumination | OLux (IR-LED) | OLux (IR-LED) | OLux (IR-LED) | OLux (IR-LED) | ||||
S/N Ratio (Y Signal) | 46dB | 46dB | 46dB | 46dB | ||||
UTP | Built-in UTP TX | |||||||
Maximum Transmission Length: 200m (UTP CAT 5e) | ||||||||
Balanced Differential Impedance: 100 ohm | ||||||||
Lens | ||||||||
Focus Length | 3.8mm | 3.8mm | 3.8mm | 3.8mm | ||||
Max.Aperture Ratio | 2 | 2 | 2 | 2 | ||||
Angular Field of View | H: 54? | H: 54? | H: 54? | H: 54? | ||||
V: 40? | V: 0? | V: 40? | V: 40? | |||||
Operational | ||||||||
Shutter Mode | Auto(Rolling Shutter) | Auto(Rolling Shutter) | Auto(Rolling Shutter) | Auto(Rolling Shutter) | ||||
Gain Control | Auto | Auto | Auto | Auto | ||||
White Balance | Auto | Auto | Auto | Auto | ||||
(3200°K~6500°K) | (3200°K~6500°K) | (3200°K~6500°K) | (3200°K~6500°K) | |||||
Digital Noise Reduction | Auto | Auto | Auto | Auto | ||||
Day & Night | Auto | Auto | Auto | Auto | ||||
IR Distance | 15m(20EA) | 15m(20EA) | 10m(12EA) | 10m(12EA) | ||||
Environmental | ||||||||
Operating Temperature/Humidity | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | 0°C ~ +40°C (+32°F~+104°F) / 20% ~ 85% RH | ||||
Mechanical | ||||||||
Dimension (W x H x D) | W65.5 X H65.5 X D94.6 | W65.5 X H65.5 X D94.6 | W102 X H71.7 | W102 X H71.7 | ||||
Weight | 300g | 300g | 160g | 160g |
