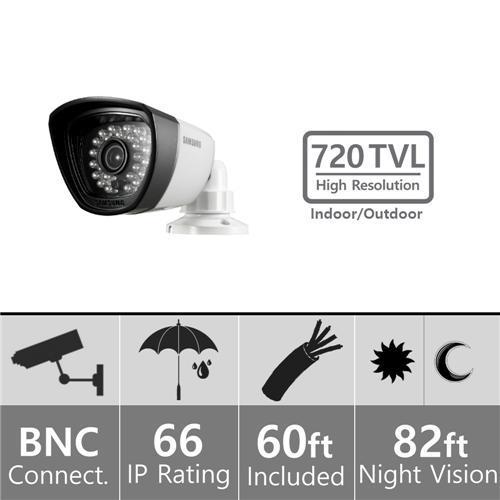

720TV lines high resolution True Day & Night with ICR for perfect color reproduction IP66 weather resistant Night vision up to 82ft 60ft of cable included
Product Code: SDC-7340BC Product ID: 24166
Product sold by: samstores.com
Availability: In Stock New
SDC-7340BCN
Electrical
Input Voltage 12V DC
Power Consumption 3W
VIDEO
Imaging Device 1/3" 960H CMOS
Active Pixels 976(H) x 494(V)
Scanning System Interlace
Synchronization Internal
Frequency H : 15,734Hz / V : 59.94Hz
Horizontal Resolution 720TV lines
Min. Illumination Color : 7Lux, B/W : 0Lux (IR LED on)
S/N Ratio (Y Signal) 46dB
LENS
Focal Length 3.8mm
Max. Aperture Ratio F2.0
Angular Field of View H : 75? / V : 66? / D : 80?
OPERATIONAL
Shutter Mode Auto (Rolling shutter)
Gain Control Auto
White Balance Auto (1,800°K ~ 10,500°K)
Digital Noise Reduction Auto
Day & Night Auto
IR Distance (850nm) 25m (82ft)
ENVIR ONMENTALTAL
Operating Temperature / Humidity -10°C ~ +50°C (+14°F ~+122°F) / 20% ~ 85%RH
MECHANICAL
Ingress Protection IP66
Dimensions (WxHxD) 72.1 x 62.9 x 192.4mm (2.84" x 2.48" x 7.57")
Weight 252g (0.56 lb)
