QUITE COOL QC TRI-2.3 TRIDENT LINE

The TRI-2.3 will help you slash your A/C related electricity costs by 50-90% and pays for itself faster than any other "green energy" product on the market today.

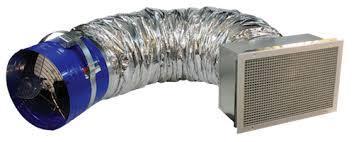

This fan motor and self-contained duct system hangs in the attic and the fan's whisper quiet operation is made possible by QuietCool's patented acoustical ducting that provides six feet of separation between the fan motor-head and the ceiling intake grill inside the house.

The TRI 2.3 is a 2-speed, single motor fan that draws 2497CFM (Cubic Feet per Minute) on high speed and 1817 on low speed, and it is the perfect fan for smaller homes where you desire both quick, high volume ventilation, or continuous, low speed “breeze effect” cooling. And with its newly designed gravity damper box, we achieved an R-Value of R-5 with the dampers closed!

Specifications

Motor Voltage   120 V. AC, 60 Hz  2 SPEED

Energy Use          228 Watts High/193 Watts low

Air Flow               2497 CFM high/ 1817 CFM Low

CFM/Watt- Efficiency Rating        9.4 High / 11.0 Low

Square Foot Coverage @ 2 CFM per SQ FT              Covers up to 1250 SQ FT

# of Speeds         2 Speed

Duct Diameter    16"

Duct Length        6 feet

Motor Head Diameter     16 1/2"

Motor Head Length         13 3/4"

Sound Level in Room "Acoustical"              45 db

R Value at Closed Damper             R 5.0

Dampers              Air Tight Insulated Dampers

Controls               Remote Control or Hard Wire Capabilties

Warranty             15 Years

Framing               None Required

Fits between "16 or 24" on Center Joists  No Joist Cutting Necessary

Minimum Suggested Attic Venting              3 SQ FT net free area

Ceiling Rough Opening    14 1/4" X 18 1/4"

Ceiling Grill Outside Dimension    16" x 20"

Ceiling Grill Color              White- High Volume Air Flow

Shipping Weight42 Lbs.

Ship Carton Dimensions  20" x 21" x 38"

Ship Carton Cube              9.2

UL Component   UL Listing Numbers

Motor   E62815; E62788; E62862

Power Cord         E55178; E147323

RACO Handy Box & Cover             E195978

Acoustic Duct     MH11637
