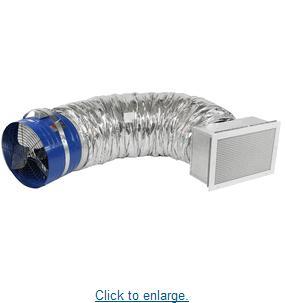

QUIET COOL QC 2250 D CLASSIC WHOLE HOUSE

QC Manufacturing, QC2250, Whole House Fan,White, QC 2250, Fans 2285 CFM Quiet Cool Whole House Exhaust Fan This Quiet Cool 2250 Series fan is an innovative whole house fan that has none of the disadvantages of Type I and Type II fans. It s big advantage is that it is not mounted to the ceiling but instead is suspended in the attic with straps from the roof rafters. It s connected to an attractive ceiling grill with a patented acoustical insulated flexible duct, thus eliminating all vibration, rattle and noise in the house. It is so quiet in operation that it can be installed in a bedroom or sleeping room without a sleeping person being able to hear it. It has a damper with insulated doors that prevents cold air intrusion in the wintertime. This also allows the cooling and ventilation to take affect even with the bedroom door closed as long as a window is open.

The QUIETCOOL QC-2250 will help you slash your A/C related electricity costs by 50-90%* and pays for itself faster than any other "green energy" product on the market today.

The QC 2250 draws 2463 CFM (Cubic Feet per Minute) and is the perfect fan for homes that may feature additional fans in bedrooms; instead of a larger central unit, combine a QC 2250 with smaller individual bedroom fans for private, zoned control and watch your electricity bills go down even more!

Specifications

Motor Voltage   120 V. AC, 60 Hz  2 SPEED

Energy Use          High Speed 249 Watts and Low speed 199 Watts

Air Flow               High 2463 CFM and Low 1829

CFM/Watt- Efficiency Rating        9.9

Square Foot Coverage @ 2 CFM per SQ FT              Covers up to 1225 SQ FT

# of Speeds         2 Speed

Duct Diameter    16"

Duct Length        6 feet

Motor Head Diameter     16 1/2"

Motor Head Length         13 3/4"

Sound Level in Room "Acoustical"              45 db

R Value at Closed Damper             R 5.0

Dampers              Air Tight Insulated Dampers

Controls               Remote Control or Hard Wire Capabilties

Warranty             10 Years

Framing               None Required

Fits between "16 or 24" on Center Joists  No Joist Cutting Necessary

Minimum Suggested Attic Venting              3 SQ FT net free area

Ceiling Rough Opening    14 1/4" X 18 1/4"

Ceiling Grill Outside Dimension    16" x 20"

Ceiling Grill Color              White- High Volume Air Flow

Shipping Weight42 Lbs.

Ship Carton Dimensions  20" x 21" x 38"

Ship Carton Cube              9.2

UL Component   UL Listing Numbers

Motor   E62815; E62788; E62862

Power Cord         E55178; E147323

RACO Handy Box & Cover             E195978

Acoustic Duct     MH11637
