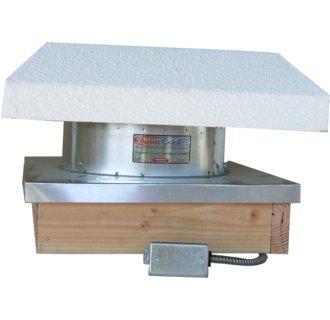

QC MANUFACTURING RMES-2200CRB FLAT ROOF MOUNT 2,245 CFM FAN WITH CURB AND 16 INCH DUCT COLLAR

New for 2012, the QuietCool RM ES series fans replace our prior year models.

Roof mount fans usually present a challenge to most HVAC, construction and electrical contractors when it comes to configuring quiet, roof mount ventilation.  Traditional roof mount fans are typically noisy, draw huge amounts of energy, or are difficult to install due to odd roof lines.  QuietCool solves all these problems.

First, we adapted our ES motors to serve the needs of smaller homes and larger homes.

The RM ES-2200 blows 2245 CFM at just 197 watts and is best for larger homes.  As well, you can use them in combination for any size or shape of home.

Most challenging for homeowners is selecting the correct fan based on roof pitch.  QuietCool solves that problem, too.

Choose either motor model # and specific FLT for flat roofs to 2/12 pitch

Choose either motor model # and specify CRB for flat roofs that require a curb mount

Choose either motor model # and specify SLP for sloped roofs 3/12 to 6/12 pitch

Specifications

Motor Voltage   120 V. AC, 60 Hz

Power Consumption        197 Watts

Air Flow @0.1" SP             2245 CFM

CFM/Watt           11.4

Sound Level in Room       49 db

Roof Rough Opening       16 1/4" X 16 1/4"

Ceiling Rough Opening    14 1/4" X 18 1/4"

Intake Grill Outside Dimension     16" x 20"

Intake Grill Color              White

Shipping WeightFLT-37 Lbs., SLP-39 Lbs., CRB-48 Lbs.

Ship Carton Dimensions  27" x 27"  x 21"

Ship Carton Cube              8.86

UL Component   UL Listing Numbers

Motor   E62815; E62788; E62862

RACO Handy Box & Cover             E195978
