PIONEER ELITE VSX60 7.2 CHANNEL NETWORK READY AV RECEIVER FEATURING AIRPLAY, IPOD, IPHONE, IPAD CERTIFICATION, ADVANCED 1080P VIDEO PROCESSING AND MULTI-ZONE AUDIO (OPEN BOX)

Features:

Amplification

Channels: 7.2

Amplification Type: Direct Energy

90 W/ch (20 Hz – 20 kHz, THD 0.08 % @ 8 ohms FTC)

Audio

Dolby® TrueHD/Dolby® Pro Logic® IIz/Dolby Digital Plus

DTS-HD® Master Audio/DTS-ES/DTS Neo:6

Digital Core Engine with Texas Instruments Aureus™ DSP

Hi-bit24 Audio Signal Processing

192 kHz/24-bit DAC

HDMI Audio Return Channel

Pioneer Advanced MCACC® Room Calibration

3D Time Axis Measurement

Polarity Check

Automatic Crossover Detection

Reverb Before and After Calibration Results (OSD or AVNavigator)

Standing Wave Control

Pioneer Sound Enhancements

Phase Control

Auto Phase Control Plus/Phase Control Plus

PQLS Bit-stream/Multi-Surround/2ch

Advanced Sound Retriever® (Multi-ch)

Sound Retriever Link

Auto Sound Retriever/Auto Sound Retriever for ARC

Sound Retriever AIR

Auto Level Control (Multi-ch)

Advanced Surround (15 + 1 Modes)

Wide Surround Movie & Music

Front Stage Surround Advance (Wide/Focus)

Headphones Surround

Virtual Speakers (Wide/Height/Surround Back)

Virtual Depth

Video

HDMI 7 in/1 out

3D Ready (Blu-ray DiscTM, Broadcast, and Games)

Deep Color (36-bit), x.v. Color

1080p/24fps Scaler with Qdeo™

1080p Transferring

Video Conversion to HDMI

Triple HD Noise Reduction

Advanced Video Adjust

Stream Smoother

Stream Smoother Link

Frame Rate Conversion

Home Network

AirPlay Compatible

DLNA Certified® (1.5)

Compatible with Windows® 7

Music File Playback via LAN/USB (WAV, MP3, WMA, AAC, FLAC)

192 kHz/24-Bit Audio playback (WAV, FLAC)

SiriusXM™ Internet Radio

Pandora® INTERNET Radio

Internet Radio with vTuner®

ZONE 2 Analog Audio Out and Volume Control

Convenience

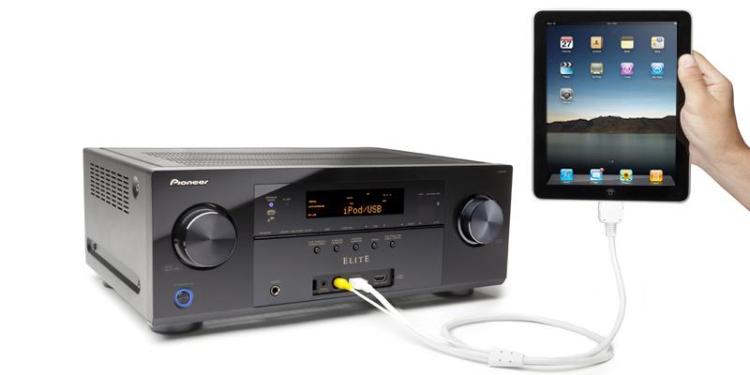

iPod Digital Transmission via Front USB Terminal

Charges iPod/iPhone/iPad, USB & Video Cable Supplied

iControlAV2012 Remote Control App Ready

AV receiver and Blu-ray Disc player control from smartphone

Sound Explorer

Air Jam App Ready (iOS/Android) (optional AS-BT200 adapter required)

Share music and create playlists via Bluetooth connection

Wireless LAN Converter Ready (optional AS-WL300 required)

Firmware Update via Internet or USB

AVNavigator for easy wiring and setup with PC or iPad

Graphic User Interface (GUI) with Album Artwork (HDMI only)

Auto Power Down

Power Save for HDMI Standby Through

AM/FM Tuner 63 Presets

Sleep Timer

Learning Remote Control (Luminous)

Specifications:

Rear Terminals

HDMI 6 in (5 assignable)/1 out

Ethernet 1 in

AV (Composite) 3 in

Audio 1 in (assignable)

Digital Coaxial 2 in (assignable)

Digital Optical 2 in (assignable)

Component Video 1 in (assignable)

Monitor Component 1 out

Monitor Composite 1 out

ZONE 2 Analog Audio out and Volume Control

Preout 2 SW out

Speaker 9 ch out (FRONT, CENTER, SURROUND, SURROUND BACK/ZONE 2, FH/FW/Speaker B)

Bluetooth Adapter Port for AS-BT200

USB Charge Port for AS-WL300 Wireless Converter

IR 1 in/1 out

12 V Trigger, RS-232C

Front Terminals

HDMI 1 in (assignable)

USB/iPod Video in

MCACC Setup MIC in

Headphones 1 out (shown on front page)

Power

Power Requirements: AC 120 V/60 Hz

Estimated Power Consumption: 550 Watts

Standby Power Consumption: Approx 0.2 to 0.3 Watts

Approximate Dimensions:

Height: 6.63"

Width: 17.13"

Depth: 14.25"

Approximate Weight:

Unit: 21.12 lbs

Shipping: 25 lbs

Warranty Information:

Manufacturer Warranty (authorized online retailer): 2 Year Parts and Labor

Extended Service Warranty Available: Click the warranty tab above for details
