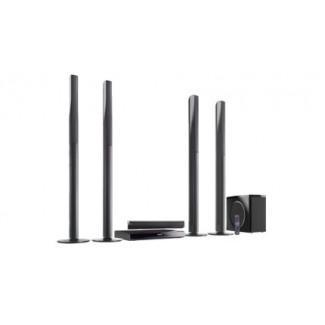

PANASONIC SC-PT980 MULTI-SYSTEM HOME THEATER SYSTEM 110-240 VOLTS

High Quality Picture and Sound with HD Adaptive Enhancer

HD Adaptive Enhancer raises image quality by correcting, in pixel units, the brightness signals of images in recorded content, DVD movies, and other media. It increases the depth and sharpness of images that have been processed by high-precision i/p conversion and 1080p Up-conversion functions, to provide richly textured results.

Advanced Bamboo Cone Speaker

More rigid and lighter evolved bamboo cone material has been adopted for speakers. With the new bamboo cone speakers the sound becomes much more responsive. Vocals are more pure and clearer, and the dialogue being crisper and easier to understand than ever before.

Kelton Subwoofer

The Kelton type subwoofer has an internal structure that is divided into two hermitically sealed spaces. The drive unit that is mounted to the space in the back causes the air in the front space to vibrate. This causes an acoustic filter effect in the front space to absorb unwanted noise while also vibrating the passive radiators. This achieves highly robust, reverberating bass sounds.

Rich Surround Sound at Low Volume with Whisper-mode Surround

In the past, when you were watching a movie late at night with the volume turned down, the surround effect would be lost. Not with Whisper-mode Surround. It compensates for the sound pressure level of the low-frequency component (which contains the signals that affect the surround effect), so you’re enveloped in a rich surround sound even when watching movies at low volume.

Panasonic SC-PT980 Code Free Home Theater System Specifications

Playable Format:

DVD-R/DVD-RW/DVD-R DL, DVD Video: Yes

DVD-R/DVD-RW/DVD-R DL, DVD-VR: Yes

DVD-R/DVD-RW/DVD-R DL, JPEG: Yes(DVD-R/DVD-RW)

DVD-R/DVD-RW/DVD-R DL, MP32: (DVD-R/DVD-RW)

DVD-R/DVD-RW/DVD-R DL, MPEG4: Yes(DVD-R/DVD-RW)

DVD-R/DVD-RW/DVD-R DL, DivX: Yes

+R/ +R DL/ +RW, Video: Yes

DVD-ROM, DVD-Video/ DivX: Yes

CD, CD-DA: Yes

CD, VCD: Yes

CD, SVCD: Yes

CD-R/-RW, CD-DA: Yes

CD-R/-RW, MP3: Yes

CD-R/-RW, JPEG: Yes

CD-R/-RW, MPEG: Yes

CD-R/-RW, WMA: Yes

CD-R/-RW, DivX: Yes

USB Terminal, MP3/WMA/JPEG/ MPEG4/ DivX: Yes

Television Signal System: PAL625/50, PAL525/60, NTSC

Power Output - Home Theater Mode (RMS):

Total Power: 1000 W

Front: 125 W x 2 (1 kHz, 3 ohms, 10% THD)

Centre: 250 W (1 kHz, 6 ohms, 10% THD)

Surround - Centre Section: 125 W x 2 (1 kHz, 3 ohms, 10% THD)

Subwoofer: 250 W (100 Hz, 6 ohms, 10% THD)

Power Output - Home Theater Mode (DIN)

Total Power: 590 W

Front: 90 W x 2 (1 kHz, 3 ohms, 1% THD)

Centre: 115 W (1 kHz, 6 ohms, 1% THD)

Surround - Centre Section: 90 W x 2 (1 kHz, 3 ohms, 1% THD)

Subwoofer: 115 W (100 Hz, 6 ohms, 1% THD)

Selectable Speaker Layout: Yes

EQ (Flat/ Heavy/ Clear/ Soft): Yes(4 preset)

Subwoofer Level: Yes

Centre Focus: Yes

Whisper-mode Surround: Yes

Dolby Pro Logic II: Yes

Super Surround: Yes

Digital Synthesiser Tuner: Yes

Station Presets: 30-FM

Dolby Digital Decoder: Yes

DTS Decoder: Yes

VIERA Link: Yes(HDAVI Control 5)

Easy Setup: Yes

DVD/CD Section:

Dialogue Enhancer: Yes

1080p Up-Conversion with HDMI: Yes

Deep Color: Yes

Zoom Function: Yes(Normal, Auto, x2, x4)

Video D/A Converter: 108 MHz/12-bit

Universal Dock Section:

Universal Dock for iPod/iPhone: Integrated

iPod/iPhone Playback(Music/ Video/ Photo): Yes

iPod/ iPhone Full Title List on Screen Display for Music & Video Content: Yes

Input/ Output:

HDMI Out: 1

Video Out: 1

Digital Input: 1(Optical)

Audio Input: 1(AUX)

USB Terminal: 1

Weight(kg)(Main Set): 2.8

Dimensions (W x H x D)(mm) (Main Set): 430 x 54 x 287

Speaker System:

Wireless Rear: Ready

Pure Direct Sound Speaker: Yes(Front/ Centre/ Surround)

Advanced Bamboo Cone: Yes(Front/ Centre/ Surround)

Front Configuration: 2 way 3 speaker, Bass-ref.

Front Speaker Unit: Woofer: 3.5 cm x 10 cm Cone Type x2, Tweeter: 2.5 cm Semi-dome Type

Front Weight (kg) : 2.3

Front Dimensions (W x H x D)(mm) : 255 x 1023 x 255

Centre Configuration: 2-way 3-speaker, Bass-ref.

Centre Speaker Unit : Woofer: 3.5 cm x 10 cm Cone Type x2, Tweeter: 2.5 cm Semi-dome Type

Centre Weight(kg): 1.06

Centre Dimensions (W x H x D)(mm) : 424 x 59 x 76

Surround Configuration: 2 way 3 speaker, Bass-ref.

Surround Speaker Unit : Woofer: 3.5cm x 10cm Cone Type x2, Tweeter: 2.5cm Semi-dome Type

Surround Weight (kg) : 2.3

Surround Dimensions (W x H x D)(mm) : 255 x 1023 x 255

Subwoofer Configuration: 1-way 1-speaker (Kelton-type)

Subwoofer Speaker Unit : Woofer: 16 cm Cone Type, Passive Radiator: 25 cm

Subwoofer Weight (kg) : 4.6

Subwoofer Dimensions (W x H x D)(mm) : 180.5 x 322 x 351
