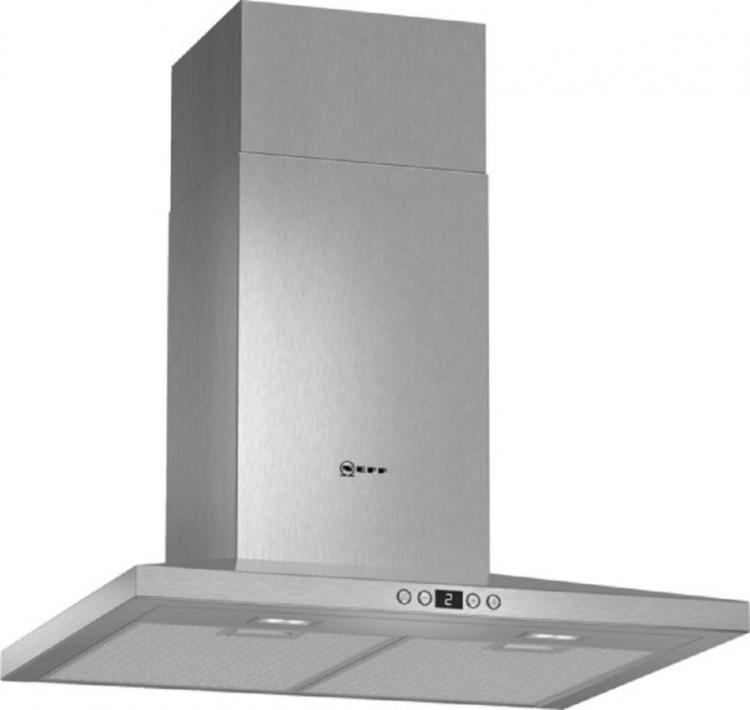

NEFF CHIMNEY HOOD DSH 6652 N / 60 CM [ENERGY CLASS A +] 220 VOLTS NOT FOR USA

 Energy Efficiency Class A + / Stainless Steel

Technical details

fire         Neff

Model   DSH 6652 N

Product Dimensions       50 x 60 x 67.2 cm

Item model number       DSH 6652 N

Energy Efficiency              A +

Efficiency (10 classes)     A +

Weighted Annual Energy Consumption 29 kilowatts of Hours Per Year

Annual Energy Consumption      29 kilowatts of Hours Per Year

Noise Level Drying           69 dB

Noise Level Washing      69 dB

Noise level          69 dB

Part Number      4242004175414

Special Features               Wall hood, exhaust air, circulating air, washable filter, LCD display, after-run function, metal grease filter, grease filter cleaning indicator, intensive level

Color     stainless steel

Wattage               3 watts

Airflow Displacement     680 cubic_meters_per_hour

Batteries Required?        No

Weight 14 kilograms

Product description

Energy efficiency class: A +

60 cm in width.

AIR FLOW: 680 m³ / h

3 Power Levels With 2 levels of intensive

LED lighting

Information on energy efficiency and consumption values

According to regulation (EU) no. 65/2014

A. Manufacturer: Neff

For Model: D66SH52 N0

C. Haze cover: Yearl. Energy consumption (AEC): 28.50 kWh / year

D. Mist, cover: Energy efficiency class: A +

E. Fluid dynamic efficiency: 33.10%

For Fluid Dynamics efficiency class: A on a scale of A (most efficient) to g (least efficient)

G. Mist, cover: lighting efficiency: 124.00 lux / watt

H. lighting efficiency class: A on a scale of A (most efficient) to g (least efficient)

I. fat deposition level: 79,30%

J. Class for the fat deposition level: C (> 75 - 85%) on a scale of A (most efficient) to g (least efficient)

K. Air Flow When minimum speed during normal operation: 270.00 M³ / h

AIR FLOW at maximum speed during normal operation: 430.00 M³ / H

Length Air Flow during operation on the intensive level / Quick Running level: 680.00 M³ / H

With a rated air acoustic emission with minimum speed during normal operation: 47.00 dB

A rated air acoustic emission at maximum speed during normal operation: 58.00 dB

N. A Rated Air sound emissions in operation on the intense / Quick level: 69.00 dB

Without Power Consumption while in off state: 0.24 watts

P. Power consumption in standby state: 0.00 W

Product description

• Energy efficiency class: A + *

• Average energy consumption: 28.5 kWh / year *

• Fan efficiency class: A *

• Lighting efficiency class: A *

• Grease filter efficiency class: C *

• Noise min./max. Normal level: 47/58 dB *

• Optional extract air or recirculation mode

• For recirculation mode, a starter kit or CleanAir recirculation module (special accessory) is required

• For wall mounting via hotplates

• Easy installation through EASY mounting system

• Aerodynamically optimized inner frame

• Short-stroke keys (3 power levels and 2 intensive levels ) with 7-segment display

• Intensive

levels with automatic reset • AirFresh interval ventilation

• Automatic fan after-run with digital display

• Dual-

flow high-performance fan • Energy-saving operation due to double-flow high-performance

blower with EfficientDrive motor technology • Exhaust air flow according to EN 61591:

  max. Normal operation 430 m³ / h

  Intensive level 680 m³ / h

• Noise level according to EN 60704-3 and EN 60704-2-13 with exhaust air operation:

  Max. Normal level: 58 dB (A) re 1 pW (44 dB (A) re 20 μPa sound pressure)

  Intensive level: 69 dB (A) re 1 pW (55 dB (A) re 20 μPa sound pressure)

• Metal grease filter, dishwasher-safe

• Saturation indicator for metal grease filter • Workplace lighting

with 2 x 3 W LED modules • Color

temperature: 3500 K

• Softlight

• Dimmer function with stepless adjustment of the luminous intensity

• Equipment dimensions exhaust air (HxWxD): 672-954 x 600 x 500 mm

• Equipment dimensions circulating air (HxWxD): 672-1064 x 600 x 500 mm

• Equipment dimensions circulating air with CleanAir circulating air module (HxWxD):

  689 x 600 x 500 mm - Mounting on external

  duct 809-1139 x 600 x 500 mm - Mounting on internal duct

• Exhaust air duct Ø 150 mm (Ø 120 mm enclosed)

• Connecting cable 1.3 m with plug

• Total connected load: 136 W
