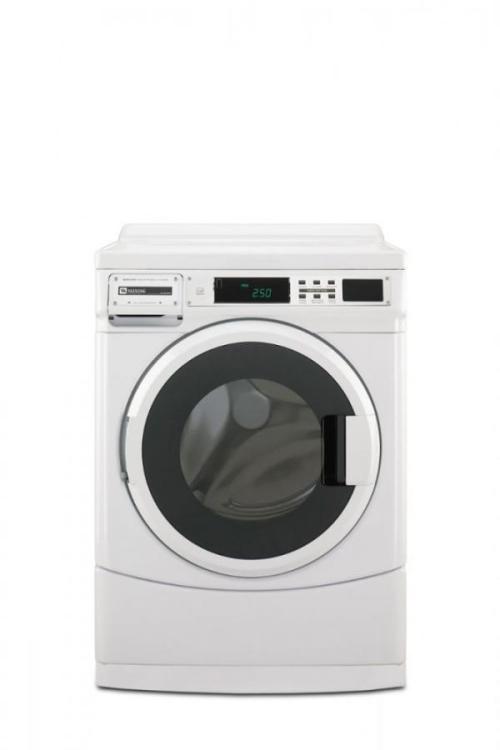

MAYTAG MHN33PRTKW COMMERCIAL FRONT LOAD WASHER 220-240VOLT, 50HZ 220-240VOLT, 50HZ NOT FOR USA

• DURACORE DRIVE SYSTEM
• Dura Core Drive System is designed and tested to run 15,000 cycles*
• Watertight, flexible triple-lip seal with garter spring keeps moisture away from the shaft, protecting the premium bearings
• Durable shaft sleeve is designed to eliminate shaft wear
• INTELLIGENT CONTROLS
• Provide flexibility to price both base cycles and cycle modifiers to help maximize earnings
• Built-in diagnostics assist with quick identification of issues
• Easy-to-read Time Remaining Display keeps users informed
• Intuitive cycles and options allow users to easily choose their preferred wash cycle
• ADVANCED SPIN TECHNOLOGY
• Delivers more consistent cycle times**
• Offers automatic load balancing through a six-point suspension to provide optimal stability for the entire wash unit
• BUILT TO LAST
• Heavy-duty die-cast door hinge — opens 180° and is built to withstand the rigors of commercial laundry
• Durable soap dispenser — fully flushed with water during every wash cycle, helping minimize maintenance
• Porcelain enamel top — a durable finish that stands up to the demands of high traffic
• Designed for cleanliness with soap dispenser flushed with water every cycle

Technical Specification

Voltage and Frequency: 220-240Volt, 50Hz

Payment Configuration: Card Ready & Non-Vend

Amps: 10A

UL Listed: Yes

CSA Certified: Yes

CAPACITY

Cylinder Volume — cu. ft. (liters): 3.1 (88)

IEC Capacity — lb. (kg): 23.2 (10.5)

WATER INLET HOSE/DRAIN HOSE

Operating Pressure — psi (Bar): 20–100 (1-8)

Inlet Hose Length — ft. (m): 6 (1.83)

Drain Hose Length — ft. (m): 6 (1.83)

APPROXIMATE WATER USAGE

Average Total Water Usage Per Cycle — gallons (liters): 10.71 (40.50) *

Average Hot Water Usage Warm Water Cycle — gallons (liters): 0.71 (2.69)

Average Hot Water Usage Hot Water Cycle — gallons (liters): 2.71 (10.26)

Extract Speed — Max G-Force/Max: 300/1000

Motor Size — hp (kW): 0.5 (.37)

DIMENSIONS

Depth — in. (mm): 28.81 (732)

Width — in. (mm): 27 (686)

Height — in. (mm): 37.81 (961)

CRATED DIMENSIONS

Width — in. (mm): 29 (737)

Depth — in. (mm): 33.5 (851)

Height — in. (mm): 40.5 (1,029)

APPROXIMATE WEIGHT

Uncrated — lb. (kg): 235 (107)

Crated — lb. (kg): 244 (111)
