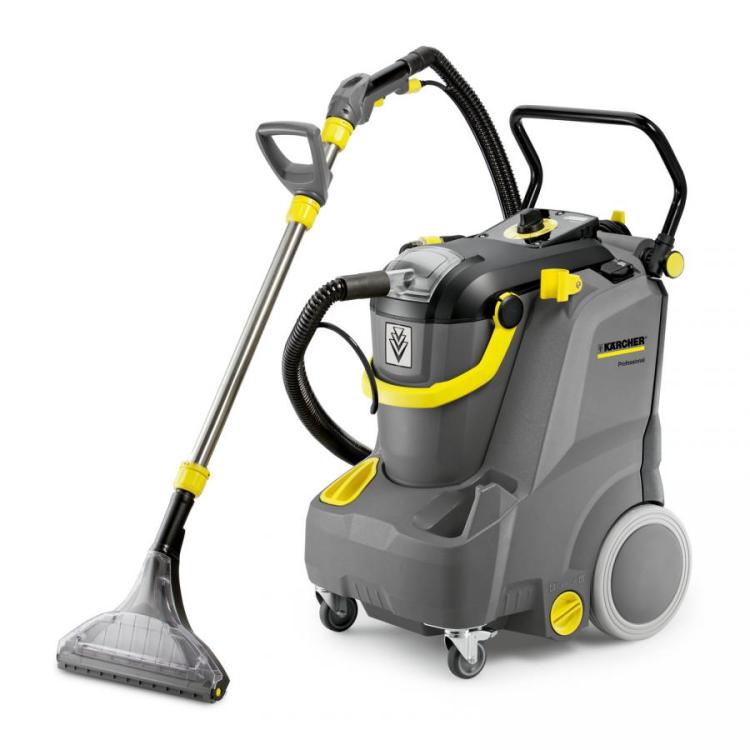

KARCHER 1.101-120.0 UPRIGHT SPRAY WAND AND REMOVABLE WASTE WATER TANK 230VOLT, 50HZ NOT FOR USA

With a noise level of 66 dB (A), the Puzzi 30/4 spray extraction machine is the quietest wet vacuum cleaner in its class and ideal for low-noise cleaning. With a 30-litre fresh water capacity and a 350 mm floor nozzle, this innovative spray extraction machine is especially suitable for cleaning large carpeted areas. The machine design places great emphasis on ergonomic, stress-free and time-saving cleaning. The EASY-Operation concept and the ergonomic upright stance make handling much easier. The learning curve is smooth, thanks to easily understandable pictograms. The dirty water tank is removable, and the handle and shape of the tank are designed for ergonomic transport. The container is easy to clean, which also makes it suitable for filling the fresh water tank. The short set-up period saves time and money. The drying time with this machine is up to 30% shorter than with competitiveproducts. This is partially due to the flexible suction lip, which always assures an optimal suction angle. The Puzzi 30/4 is easy to carry, even when lying flat with a full fresh water tank, and its large castor wheels make it easy to transport over stairs.

Power outlet for PW 30

·        The integrated power outlet enables flexible use of the PW 30/1 without an additional power source.

·        When not in use, the power outlet is effectively protected by an automatically closing flap.

·        The PW 30/1 improves the area performance, cleans the pile with a rotating brush and aligns it in one direction.

Removable dirty water tank

·        To protect against dirt, the waste water tank handle is attached to the outside.

·        The dirty water tank is easy to remove and can also be used for filling the freshwater tank.

·        A short description on the rear of the waste water tank explains the work process in a way that is easy to understand.

Extremely quiet

·        At just 66 dB(A), the Puzzi 30/4 is the quietest wet vacuum cleaner of its kind.

·        Thanks to the low volume level, the machine can be used anywhere, even during business hours and in hotels.

·        The low noise emissions protect the operator and allow longer work intervals

Technical data

Voltage and Frequency: 230V/50Hz

Max. area performance (m²/h): 60 - 75

Air flow (l/s): 74

Vacuum (mbar/kPa): 254 / 25,4

Spray volume (l/min): 3

Spray pressure (bar): 4

Fresh/dirty water tank (l): 30 / 15

Turbine capacity (W): 1200

Pump capacity (W): 70

Max. area performance (m²/h): 60 – 75

Equipment:     ·        Spray hose with integrated water supply, 4 m

                            ·        Socket for Professional washing head, PW 30/1

                            ·        Spray vacuum hose (m), 4 m

                            ·        Additional handle

                            ·        Wide floor nozzle with flexible suction lip

                            ·        Handle with trigger

Weight and Dimension

Unit Dimensions: 36.61" H x 18.11" W x 22.83" L

Unit Weight with accessories: 57.32 lbs.
