HYUNDAI DHY8600SE DIESEL GENERATOR 220 VOLTS 50 HZ NOT FOR USA

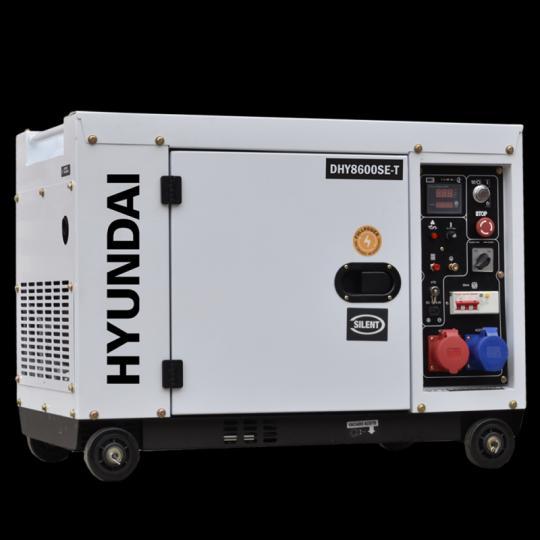

The HYUNDAI Silent Diesel Generator DHY8600SE-T D is a quiet and extremely reliable Hyundai generator with a maximum output of 7.9 kVA and 230V / 400V connections. It is particularly suitable for use as an emergency generator to protect against power failures or as a construction site generator.

The Hyundai generator is equipped with an air- cooled 12 hp diesel engine. The powerful 4-stroke 498 cc Hyundai diesel engine has an electric starter and an integrated battery. It is started electrically.

The sound-insulating housing of the silent generator ensures a massive reduction in noise emissions and thus protects the surrounding area from unnecessary noise pollution. Power, voltage, current, frequency and operating hours can be read on the digital display. The integrated 12 l tank and the economical diesel engine ensure a full 10 hours of operation (at 50% load). Overload protection and the low-oil cut-off protect the Hyundai generator set from irreparable damage. The generator requires little maintenance and upkeep and is very user-friendly. The Hyundai emergency generator has a 32A - 230V and a 400V connection for larger pantographs. The Hyundai Silent Generator stands on its wheels and is slightly mobile despite its heavy weight.

Features

• Maximum power of 7.9 kVA
• 12 hp 4-stroke 1-cylinder diesel engine
• 230V & 400V connections / ATS
• Emergency generator, air-cooled
• Quietly through disguise
• LED display
• Low Oil Protection
• Easy to use
• Stable current through AVR
• With electric start
• Protected against overload
• Protected against low oil level
• ATS connection (ATS optionally available)
• Built-in fuse

Specifications

• Engine Type: 4-Stroke, 1-Cylinder, Fan Cooling
• Engine Power: 12.0 Hp
• Displacement: 498cc
• Oil Capacity: 1.75L
• Tank Capacity: 12L (Diesel)
• Guaranteed Sound Power Level LwA: 96dB
• Generator Designation: D500E
• Launch System: Electric Start
• Generator Frequency: 50Hz
• Generator Nominal Voltage: 400V / 230V
• Generator Rated Current: 14A (400V) / 28a (230V)
• Generator Rated Speed: 3,000 rpm
• Generator Rated Power: 7.5kVA (400V) / 5.5kW (230V)
• Generator Max Power: 7.9kVA (400V) / 6.0kW (230V)
• Ac Output: 1 X 400V (16A) / 1 X 230V (32A)
• Connections: Ats Connection (Ats Box Optionally Available), Earth Fuse
• Generator Operating Time: 10 H (At 50% Power)
• Size (LxWxH): 920x520x720mm
• Weight: 162kg
