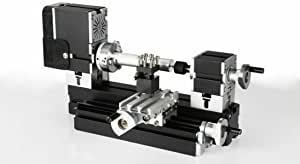

HIGH POWER MINI METAL LATHE SOFT METALWORKING WOODWORKING DIY MODEL MAKING 60W 220-240 VOLTS NOT FOR USA
"Package Include: 1 x A Set of Mini Metal Lathe(Bulk parts) Motor case and headstock are jointed. Maximum motor power is 144W by using a more powerful motor. Some parts are electroplated to make the machine more beautiful and practical. Main parts: headstock, tailstock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover. All of the parts are made of metal except the drive belt cover. Center height- 50mm, the distance between centre-135 mm, motor speed normally will drop to 2000rpm/min when it machines metal. Lathe tool is made of high-speed steel quality material and it can machine soft metal, nonferrous metal and precious metal. By using a central block, the diameter can be expanded to 50mm"
Product Code: B09DRW4V69 Product ID: 32626
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
Description:
1. Motor case and headstock are jointed. Maximum motor power is 144W by using a more powerful motor. Some parts are electroplated to make the machine more beautiful and practical.
2. Main parts: headstock, tailstock, long machine bed, big slider, small slider, motor blade, gear, connection piece, drive belt cover. All of the parts are made of metal except the drive belt cover.
3. Center height- 50mm, the distance between centre-135 mm, motor speed normally will drop to 2000rpm/min when it machines metal.
Lathe tool is made of high-speed steel quality material and it can machine soft metal, nonferrous metal and precious metal. By using a central block, the diameter can be expanded to 50mm
Parameter:
Motor speed :12,000rpm/min(optional choice 20,000rpm/min)
Input voltage/current/power:12VDC/5A/60W
Maximum working material diameter:100mm
Working material length:135mm
Working material: lignin plastic, soft metal( gold, silver, copper, aluminium etc.), acrylic, plastic etc.
With a 0.02mm scale line, the handwheel increases the precision when processing.
Motor power:144W
Axis Z travel 145mm, Axis X travel 32mm
Accuracy of process:0.07mm, working material: soft metal (gold, silver, copper, aluminium etc.)
Package Include:
1 x A Set of Mini Metal LatheBulk parts
