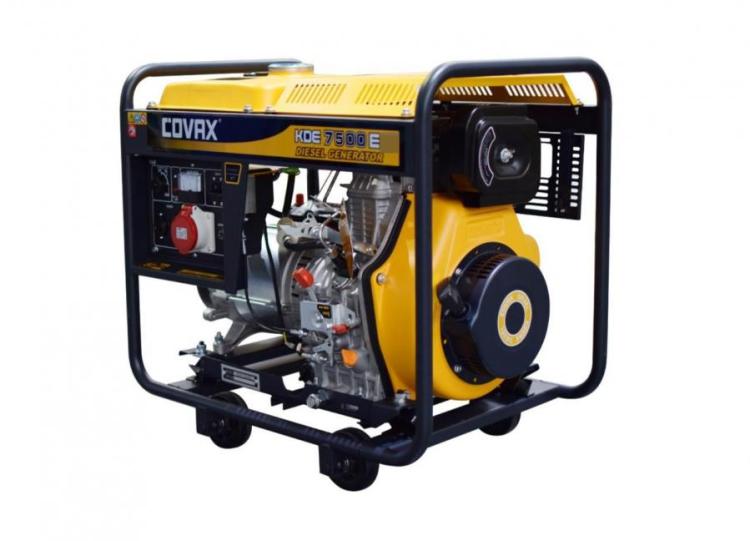

COVAX KDE7500E 5.5KW DIESEL GENERATOR 220 VOLTS NOT FOR USA
Type of execution on the frame Tank capacity, l 12.5 Max. autonomy (at 100% load), h 6.3 Max. autonomy (at 75% load), h 8.3 Max. autonomy (at 50% load), h 12.5 Dimensions, mm 710x515x630 Weight, kg 100
Product Code: KDE7500E Product ID: 34478
Product sold by: samstores.com
Availability: In Stock New
Ship within 24 hours. Most orders delivered to any of the 48 US states in just 3-10 business days!
The economical single-phase diesel generator Covax KDE7500E with a maximum power of 5.5 kW is used as a power source for electrical equipment in places with permanent or temporary power outages. The power plant will operate for a long time due to the presence of short-circuit and overload protection. The built-in synchronous electric generator with an automatic regulation system provides reliable output voltage and current frequency. A robust steel frame increases the reliability of the design. Dampers are installed at the base of the generator, which significantly reduces the degree of vibration during operation, and a large installation platform will allow it to be firmly placed in harsh operating conditions. A fuel tank with a volume of up to 12.5 liters ensures continuous operation at 75% load for 8 hours, and a relatively small weight (100 kilograms) and compact dimensions (710x515x630 mm) make it possible to store and move this device without any difficulties.
Model
KDE7500E
Maximum power
Nominal power
5 kW
Voltage, V
230
Startup type
electric starter
Inverter
No
Maximum current, A
23.9
Rated current in main mode, A
21.7
Specific fuel consumption, l/kW*h
0.4
Fuel consumption at 100% load, l/hour
2
Fuel consumption at 75% load, l/hour
1.5
Fuel consumption at 50% load, l/hour
1
Noise level, dB
83
Protection class
IP23
After the first 5 hours of operation:
- Engine oil change
- Replacing the oil filter
- Cleaning the air filter
- Cleaning the fuel filter
- Checking and tightening fasteners
- Starting and warming up the generator set
- Oil and filter disposal
Every 50 engine hours or 3 months (whichever comes first):
- Engine oil change
- Replacing the oil filter
- Cleaning the air filter
- Replacing the fuel filter
- Checking and tightening fasteners
- Cleaning of cooling fins, muffler, piston rods and springs
- Starting and warming up the generator set
- Oil and filter disposal
Every 100 hours or 6 months (whichever comes first):
- Engine oil change
- Replacing the oil filter
- Replacing the air filter
- Replacing the fuel filter
- Cleaning the spark arrestor of the muffler
- Checking the condition of the spark plug (replacement if necessary)
- Checking and tightening fasteners
- Cleaning of cooling fins, muffler, piston rods and springs
- Starting and warming up the generator set
- Oil and filter disposal
Every 300 hours or 12 months (whichever comes first):
- Engine oil change
- Replacing the oil filter
- Replacing the air filter
- Replacing the fuel filter
- Cleaning the spark arrestor of the muffler
- Checking the condition of the spark plug (replacement if necessary)
- Checking and adjusting valve clearances
- Checking the fuel line (replace if necessary)
- Checking and tightening fasteners
- Cleaning the combustion chamber
- Cleaning of cooling fins, muffler, piston rods and springs
- Starting and warming up the generator set
- Oil and filter disposal
