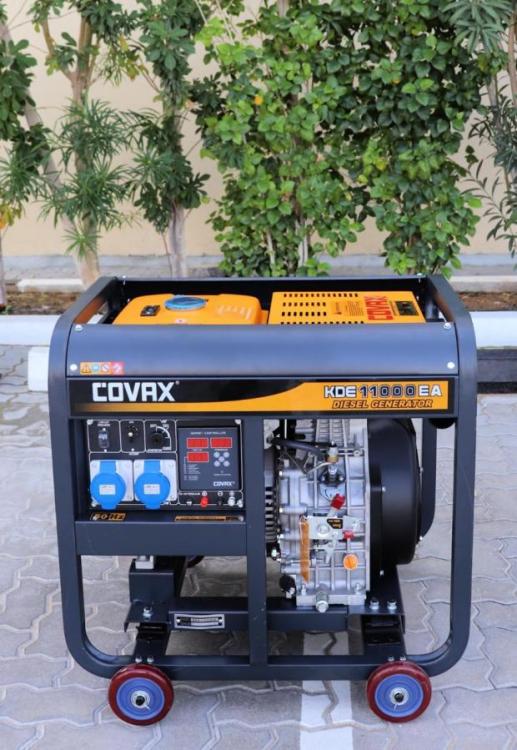

COVAX KDE11000E 9.5KW DIESEL GENERATOR 220 VOLTS NOT FOR USA

Technical parameters:

Rated frequency Hz

50 60

Rated output power kVA

8.5 9.5

Maximum power kVA

9.5 10.5

Rated voltage V

115/230 120/240

Rated current A

73.9/36.9 79.2/39.6

Rated speed rpm

3000 3600

Circuit method

Single Phase

Power Factor

1.0

Insulation level

F

Number of poles

2

Excitation method

Self-excited constant voltage (with AVR)

Panel type

E: Ordinary panel EA: Intelligent panel

Output voltage V

115/230 120/240

Output socket

-

Output Binding Posts

-

DC12V output

Low sound

-

Overall dimensions: length × width × height mm

930X620X690

Net weight Kg

185

Gross weight Kg

-

Noise (7m) dB(A)

75

Structural type

Open Shelf

model

KDE11000E

Type

Twin cylinder, V-type, air-cooled, four-stroke, direct injection

Number of cylinders-bore x stroke (mm)

2-86×72

Total displacement ml

836

Rated power KW

10.3/3000 11.3/3600

Compression ratio

19:1

Rated speed r/min

3000 3600

Ignition method

---

Cooling method

Air Cooling

Lubrication method

Pressure splash

Starting method

Electric start

Fuel Use

0# (summer) -10# (winter) -35# (severe cold) diesel engine

Use lubricant

L-ECD grade 15W30 or 15W40

Cooling water volume L

-

Lubricating oil capacity L

-

Starting motor capacity V-kW

-

Charging generator capacity VA

-

Battery capacity V-Ah

12V 36AH

Fuel consumption rate g/kW.h

≤340

Unit fuel tank capacity L

25

Continuous operation time of the unit

7 6.5
