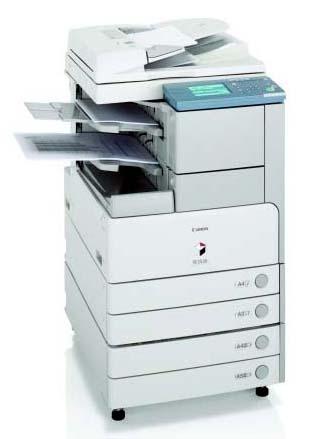

CANON IR 2230 230 VOLT, 50HZ

230 Volt, 50Hz, Desktop Copier IR2230 is multi-functional device ideal for organisations looking to maximise return on investment. As standard it is a copier, but print, fax and scan options can be added as required, Easy to use all in one efficiency.

Canon IR2230
230 Volt, 50Hz, Desktop Copier IR2230 is multi-functional device ideal for organisations looking to maximise return on investment. As standard it is a copier, but print, fax and scan options can be added as required, Easy to use all in one efficiency, Meets the growing needs of smaller work-groups, 22ppm (A4), 14ppm (A3), Energy efficient through low power consumption, Environmentally friendly through RoHS compliance, Manage easily through use of software utilities, Ships standard with 2 x 550-sheet paper cassettes, image Reader, Drum Unit, Network I/F Card, You must install either one of the DADF-N1 or Platen Cover with main unit, Duplexing Automatic Document Feeder-N1 (You must install either one of the DADF-N1 or Platen Cover with the main unit), Platen Cover Type-H (You must install either one of the DADF-N1 or Platen Cover with the main unit), Document Tray-J1, Inner 2 Way Tray-D1 (Requires optional 3 Way Unit-A1), Copy Tray-J1 (Requires optional 3 Way Unit-A1), 3 Way Unit-A1, Finisher-S1 (Requires optional 3 Way Unit-A1), Additional Finisher Tray-B1, Puncher Unit-R1, Cassette Feeding Unit-Y2 (The Cabinet-P1 and the Cassette Feeding Unit-Y2 cannot both be installed at the same time), Cabinet-P1 (The Cabinet-P1 and the Cassette Feeding Unit-Y2 cannot both be installed at the same time), Envelope Attachment Feeder-C1 (Installs in the upper-most cassette), FL Cassette-Y1, FL Cassette-Z1, Braille Label Kit-A1, Spanish Operator's Manual (CD).

Product Specification:

Unit Dimension:     30 H x 22.24 W x 27.6 D

Unit Weight:          154 Lb.

Technical Specification   IR2230

Voltage                                230V

Hertz                                    50Hz

Basic Specifications

Type                                    Desktop

Maximum Original Size           A3

Copy Sizes                            Cassette A5R - A3
Stack Bypass A3- A6, Envelopes

Resolution                            Scanning 600dpi x 600dpi
Copying 1200dpi equivalent x 600dpi Printing 2400dpi equivalent x 600dpi
256 Gradations

Copy/Print Speed                   A4: 35 ppm (iR3530), 22ppm (iR2230)
A3: 22 ppm (iR3530), 14ppm (iR2230)

First Copy Time                     less than 4.9 sec

Warm-Up Time                      15 sec max (10 sec max from sleep mode)

Multiple Copies/Prints            1 to 999 sheets

Duplexing                             Standard automatic stack less

Paper Weight                        Cassette 64 to 80g/m2
Stack Bypass 64 to 128g/m2
Cassette Universal A5R to A3

Paper Capacity                      Standard 550 sheets x 2 cassettes (1,100 sheets)
Multi Stack Bypass 50 sheets (80g/m2)
Optional 550 sheets x 2 cassettes (1,100 sheets)
Max paper capacity 2,250 sheets

CPU                                     300Mhz

Memory                                128MB (Max: 256MB)

Hard Disk Drive                     20GB (Optional)

Interface                              Ethernet (100Base-TX/10Base-T), USB

Power Supply                        230V/6A/50Hz

Power Consumption              1.35kW maximum

Dimensions                          (WxDxH) 565 x 700 x 761mm

Weight                                 Approx. 70kg

Network Printer Kit

Model Name                          Multi-PDL Printer Kit-E1

PDL                                     PCL5e, PCL6, PostScript3 Emulation and UFR II

Resolution                            2400 equivalent x 600dpi

Memory                                256MB (incl optional 128MB)

Hard Disk                             20GB (Uses Main unit HDD)

CPU                                     300MHz (Uses Main unit CPU)

PS Fonts                               Roman136

PCL Fonts                             Roman80, Bitmap1, Barcode30, OCR2

Interface                              Ethernet (100Base-TX/10Base-T), USB

Network Protocol                  TCP/IP (LPD/Port9100/IPP/IPPS/SMB/FTP), IPX/SPX (NDS,Bindery) AppleTalk

Pull Scan                              Network TWAIN Driver (150 to 600dpi, Black & White, Halftone)

Cassette Feeding Unit

Model Name                          Cassette Feeding Unit-Y

Type                                    2 Front-loading adjustable drawers

Paper Weight                        64 to 80g/m2

Paper Capacity                      550 sheets (80 g/m2) x 2 cassettes

Dimensions                          (W x D x H) 565 x 700 x 251.5mm

Weight                                 23kg

DADF

Model Name                          DADF-N1

Paper Size                            A3-A

Paper Weight                        Single sided original: 42 to 128 g/m2 Double sided original: 50 to 128 g/m2

Max. Number of Originals       50 sheets (80 g/m2)

Document Scanning Speed     Copy A4 22ipm (iR2230), 35ipm (iR3530)
Scan A4 45ipm at 300/600dpi

Finisher

Model Name                          Finisher-S1

Number of Trays                    One stack tray (Inner) & one optional tray

Tray Capacity                        One Tray: A4-A5R :1,000 sheets, A3: 500 sheets
Two Trays: (Optional) A3-A5R: 300 sheets on each tray

Staple Position                      Corner

Other Accessories (Optional)  Platen Cover-H
Document Tray-J1
iR3100C pedestal
Envelope Feeder Attachment-C1
FL Cassette-Y1/Z1
Inner 2-way Tray-D1
Copy Tray-J1
Puncher Unit-Q1/S1/T1 for Finisher-S1
Additional Finisher Tray-B1 for Finisher-S1
Staple Cartridge-J1
Stamp Inc Cartridge-B1
Card Reader-C1
Card Reader Kit-B1
Super G3 FAX Board-Q1
USB Application Interface Board-D1
iR Security Kit-A2
Printer Kit-E2
UFR II Printer Kit-E3
Expansion Bus-B1

230v Ships standard with 2 x 550-sheet paper cassettes, image Reader, Drum Unit, Network I/F Card. You must install either one of the DADF-N1 or Platen Cover with main unit

This appliance is not designed for use in America -
only for countries that use 220V electrical outlets.
