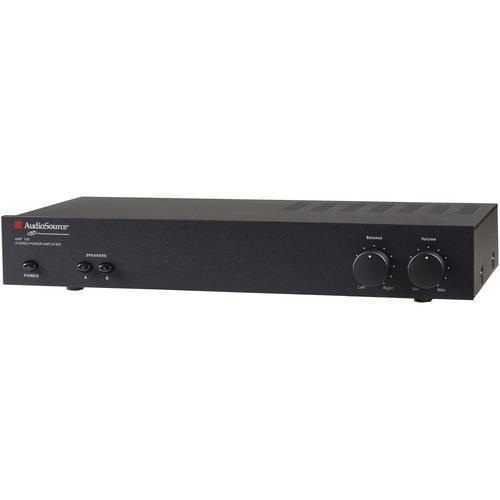

AUDIOSOURCE AMP100 50W X 2 STEREO POWER AMPLIFIER 110 VOLTS FOR USA USE ONLY

The Audio Source AMP100 is an inexpensive stereo 100 Watt power amplifier with a 50 Watt per channel output at 8 ohms. The unit features front speaker

selector switches, dual speaker outputs on 5-way binding post connectors, dual audio inputs on RCA stereo pairs, and a direct audio RCA stereo output.

The AMP100 is a viable powering solution for home audio systems, and it may also be used as a zone or distribution amplifier for bars, restaurants and

offices.

Main Features

100W Stereo Power

2 Pair Stereo (RCA) Inputs

1 Pair Stereo (RCA) Output

A, B, A+B Speaker Selector Switches

Auto On Signal Sensing

5-Way Binding Posts

All Features

Power Rating 60W @ 8 Ohms

75W @ 4 Ohms

160W @ 8 Ohms Bridged

Damping Factor Not Specified by Manufacturer

Input Sensitivity 1.4V RMS (8 Ohms)

1.2V RMS (4 Ohms)

Input Impedance Not Specified by Manufacturer

Gain Not Specified by Manufacturer

Frequency Response 20Hz - 20KHz (+1db, -0.5db, 50W @ 8 Ohms)*

20Hz - 20KHz (+1db, -0.5db, 60W @ 4 Ohms)*

*<1% THD+N

Signal-to-Noise Ratio Not Specified by Manufacturer

Total Harmonic Distortion (THD) <0.02%

Input Connections 2 x Pair L, R RCA Phono Stereo Inputs

Output Connectors 2 x L, R RCA Phono Stereo Output

4 x 5-way Binding Post Speaker Outputs

Controls Front Panel 2 x Rotary Volume Controls

2 x Speaker Selector Switches

Controls (Rear) 1 x Stereo/Bridged Switch

1 x Signal Sensing Auto On Switch

1 x Power Switch

Indicators 1 x Power On LED

Camera Resolution Convection

Power Consumption 500W

Dimensions 2.9 x 16.5 x 9.25" (73.66 x 419 x 235mm)

Weight 9.6 lbs (4.35kg)

Specialties Speaker Selector Switches

Audio and Speaker Outputs
